Sony DVF-EL1 Detachable Tilt-Type Electronic Viewfinder for FX5
The detachable tilt-type OLED Viewfinder DVF-EL1 enables accurate confirmation of focus and exposure, even in bright outdoor environments, supporting immersive image creation.
High-resolution, wide color gamut panel
By attaching the detachable tilt-type OLED Viewfinder, composition, focus and exposure can be accurately confirmed. The 0.58-type OLED panel features approx. 7.07 million dots, a wide color gamut equivalent to DCI-P3, 10-bit display support, and HDR monitoring, reproducing fine details and rich colors with clarity.
Two magnification display modes
With support for up to 0.90× magnification, the display can be switched to suit shooting styles. The “VF Magnification” setting lets you choose between “Standard” and “Zoom Out”, from resolution priority to enhanced visibility. It adapts to a wide range of shooting scenarios, including low- and high-angle shooting.

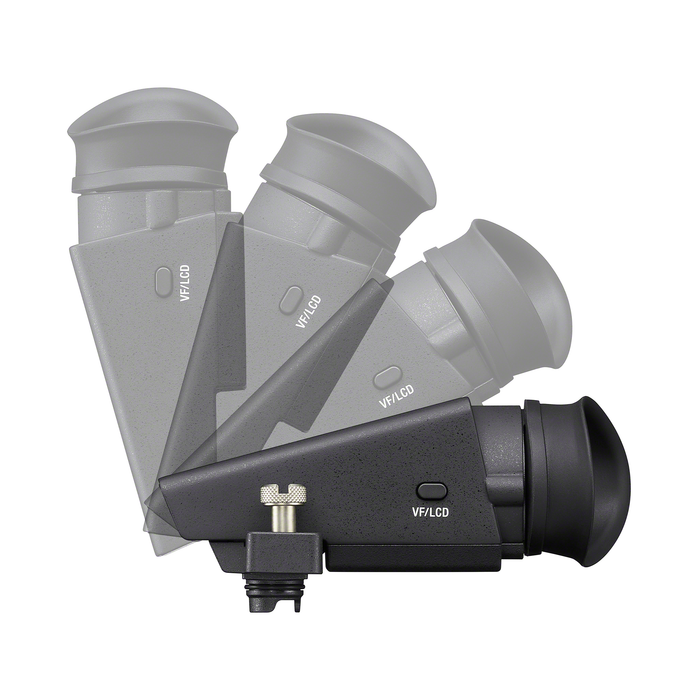

Vertical tilt mechanism for easy shooting

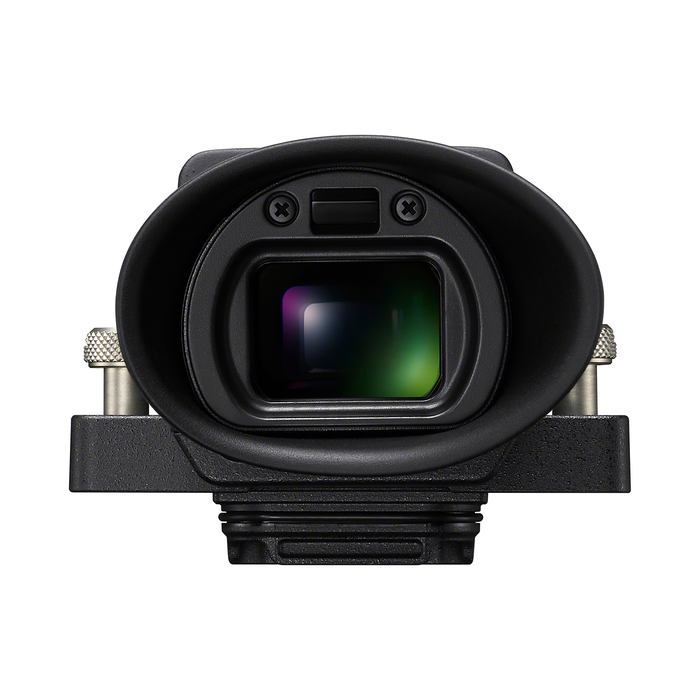

The vertical tilt mechanism allows adjustment from 0° up to approximately 90° upwards. The eyepiece cup is detachable and can be reversed from left to right, offering flexibility for various shooting styles. Removing the eyepiece cup allows the eye to be positioned closer to the eyepoint, ensuring comfortable viewing even when wearing glasses.
Integrated storage for VF terminal cap
The camera’s VF terminal protective cap can be stored inside the OLED Viewfinder body when removed. This design helps prevent loss and enables efficient handling.
Highlights:
- -4.0-+3.0 m-1 Diopter adjustment
- 27.5mm from the eyepiece lens, 21.8 mm from the eyepiece frame at -1 m-1 (CIPA standard) Eye Point
- 0.90x (with 50 mm lens at infinity, -1 m-1) Magnification
- 0.59" (0.58-type) electronic viewfinder (OLED)
- 7 077 888 dots
- VF terminal interface
- A wide color gamut equivalent to DCI-P3, and 10-bit support.
- Approx. 1.6 W power consumption
Features:
- High-resolution, wide color gamut panel
- Two magnification display modes
- Vertical tilt mechanism for easy shooting
- Integrated storage for VF terminal cap
Compatible With:
Cinema Cameras:
Dimensions:
2.36 x 1.81 x 3.74"
Weight:
0.21 lbs
Materials:
Not Specified by Manufacturer
Manufacturer SKU:
DVF-EL1B
In The Box:
Sony DVF-EL1 Detachable Tilt-Type OLED Viewfinder for FX5
Eyepiece Cup
Terminal Protect Cap
Limited 1-Year Manufacturer Warranty
